Vanguard Audio Labs

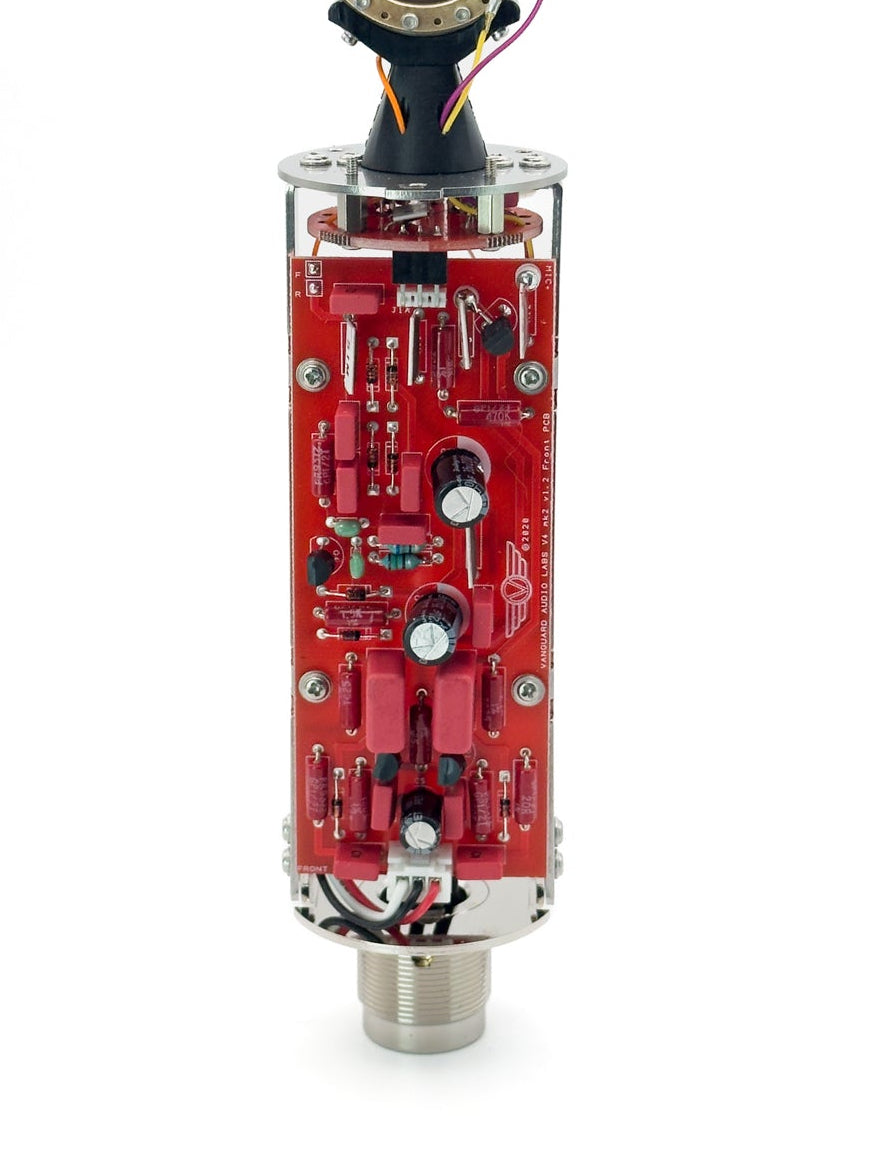

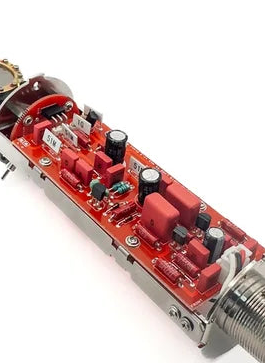

V4 gen2 with BeesNeez K47
V4 gen2 with BeesNeez K47
Vanguard Audio Labs Custom Shop now offering Custom Laser Engraving!
Vanguard Audio Labs Custom Shop now offering Custom Laser Engraving!
With our new laser engraver, you can add customizations to any of your Vanguard microphones...Studio logos, an inspirational quote, sharks with frickin’ laser beams on their heads…we can do pretty much anything!
When you purchase this, our team will reach out to you to finalize your design. You’ll receive a proof of the design from our team and we will need your final approval before we run the engraving process.
By purchasing, you acknowledge a few considerations -
The rear of the V13 is vented for the tube, so the available engraving space will be necessarily smaller
If purchasing this for a previously-purchased microphone, please note that you will need to ship your microphone body in at your own cost and pay for return shipping.
Gen1 mics utilize a C330 brass material, whereas gen2 mics we are using SUS304 stainless steel material. The look on a gen1 mic will be very different than a gen2.
For logo's or other images, you must upload an exact file of what you would like to create the design. Derek sucks at graphic design, you wouldn't like it anyways.
Due to the customizable one-of-a-kind nature of this process, please note that this makes your purchase non-refundable.
Once the design has written approval, it is set in stone. Requesting any further changes after final approval would warrant an additional engraving charge.
Couldn't load pickup availability
*Customers outside the US, click here for your local distributor*
*These products are built to order and will sometimes take up to six weeks for delivery*
- 3 selectable polar patterns – Cardioid, Figure-8, Omnidirectional
- Switchable-10/-20 dB Attenuator
- Electronically-balanced solid-state circuitry loaded with American-made audiophile-grade components
- Ultra-low-noise JFET design
- Deep-cycle cryogenic treatment of critical signal & power path components
- Neutrik® interconnects
Construction
- Heavy-duty SUS304 stainless steel, aircraft-grade aluminum, and zinc construction
- Open-weave headbasket for low internal reflections and “open-air” voicing
- Each V4 comes with its own laser-engraved serial number
- Over-spec componentry
- Deep-gloss Pinot Noir finish
- Polished nickel trim
- Precision-cast Vanguard badge
- Final Assembly & 100% Quality Control in Oregon, US
- 5-Year Warranty
For more information: https://www.vanguardaudiolabs.com/products/v4-multi-pattern-fet-condenser/
Features
Capsule & Electronics

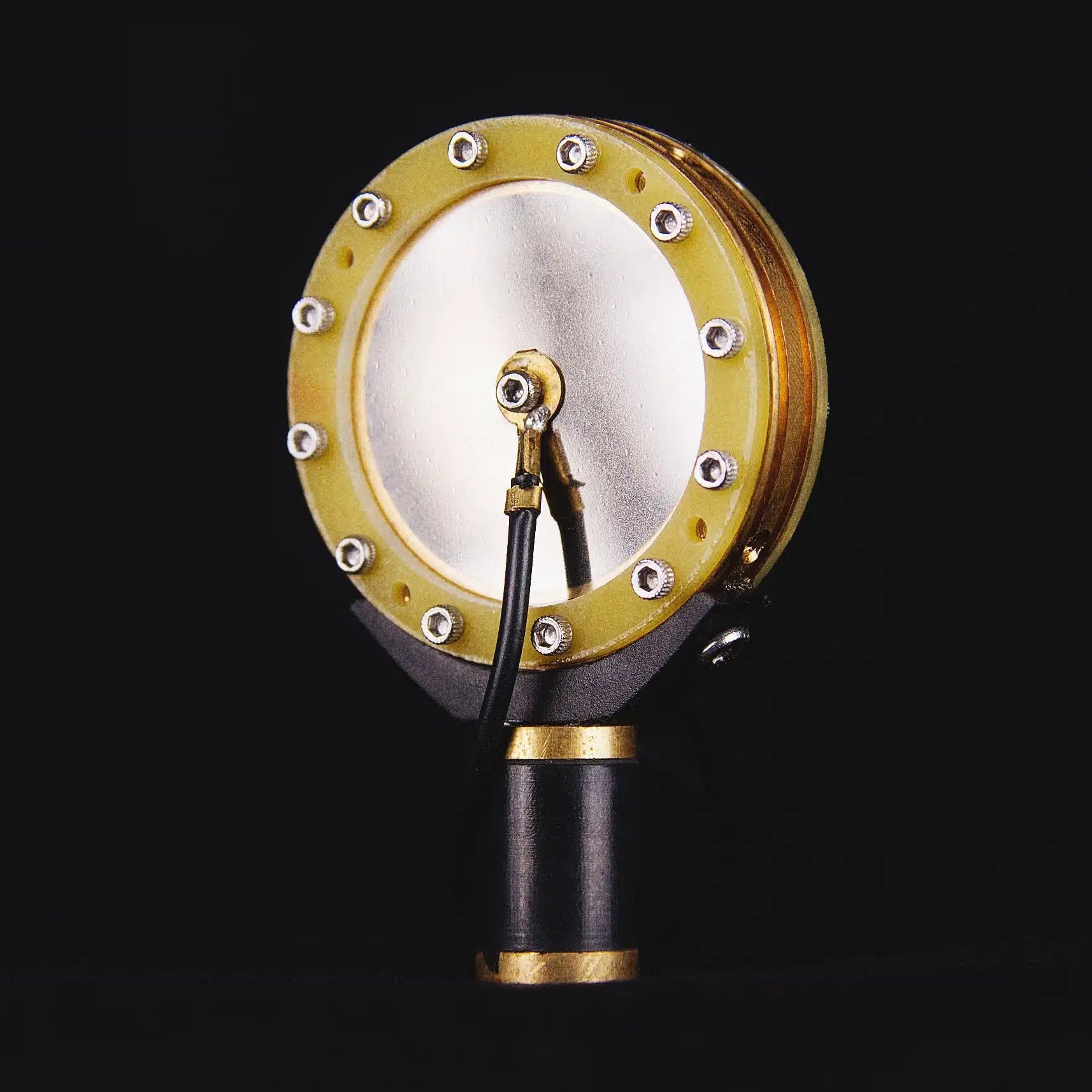

- Beesneez K47 Microphone Capsule
- Switchable-10/-20 dB Attenuator
- 3 selectable polar patterns – Cardioid, Figure-8, Omnidirectional
- Electronically-balanced solid-state circuitry loaded with American-made audiophile-grade components
- Ultra-low-noise JFET design
- Deep-cycle cryogenic treatment of critical signal & power path components
- Neutrik® interconnects
Construction
- Heavy-duty SUS304 stainless steel, aircraft-grade aluminum, and zinc construction
- Open-weave headbasket for low internal reflections and “open-air” voicing
- Each V4 comes with its own laser-engraved serial number
- Over-spec componentry
- Deep-gloss Pinot Noir finish
- Polished nickel trim
- Precision-cast Vanguard badge
- Final Assembly & 100% Quality Control in California, USA
- 5-Year Warranty
Aesthetics
- Exquisite deep-gloss Pinot Noir finish
- Polished nickel trim
- Precision-cast Vanguard badge
- Laser-etched model and serial numbers
Specs
- Transducer Type: Condenser
- Capsule Size: 1.34″ / 34mm (dual-capsule)
- Diaphragm Size: 1.04″ / 26.4mm
- Capsule Diaphragms Thickness: 3µm
- Electronics Type: Solid-state, electronically-balanced output
- Output Impedance: 200Ω
- Max SPL: appx. 135dB (145dB w/ Pad)
- Frequency Response: 20Hz-20000Hz
- Equivalent Noise Level: ≤12dBA (A-weighted)
- Sensitivity:≥82dBA (A-weighted)
- Output Connector: Neutrik® male XLR 3-pin, gold-plated
- Attenuation/Pad Switch: -10dB/ -20dB (switchable)
- Finish: Polished nickel trim / High-gloss Pinot Noir
- Weight (microphone): 0.83 lbs / 0.38 kg
- Weight (in case): 5.63 lbs / 2.56 kg
- Dimensions (microphone): 8.2″ long, 2.05″ diameter / 208mm long, 52mm diameter
- Dimensions (case): 12″L x 11″W x 5.75″H / 305mmL x 280mmW x 146mmH
- Voltage Requirement: Phantom Power (+48V ideal)
Accessories
When you buy a V4, you also get a VLSM Heavy-Duty Shockmount. We wanted to rethink the standard “spider-style” shockmount of old, and designed the VLSM with a few nifty features. First is the open front, which allows you to position the microphone as close to the source as necessary. Second, we install aerospace-grade suspension rings that won’t break, sag, crack, or stretch over time. This shockmount was designed to fit any microphone with M22x1 threading, so you also can use it with a number of microphones from other manufacturers.

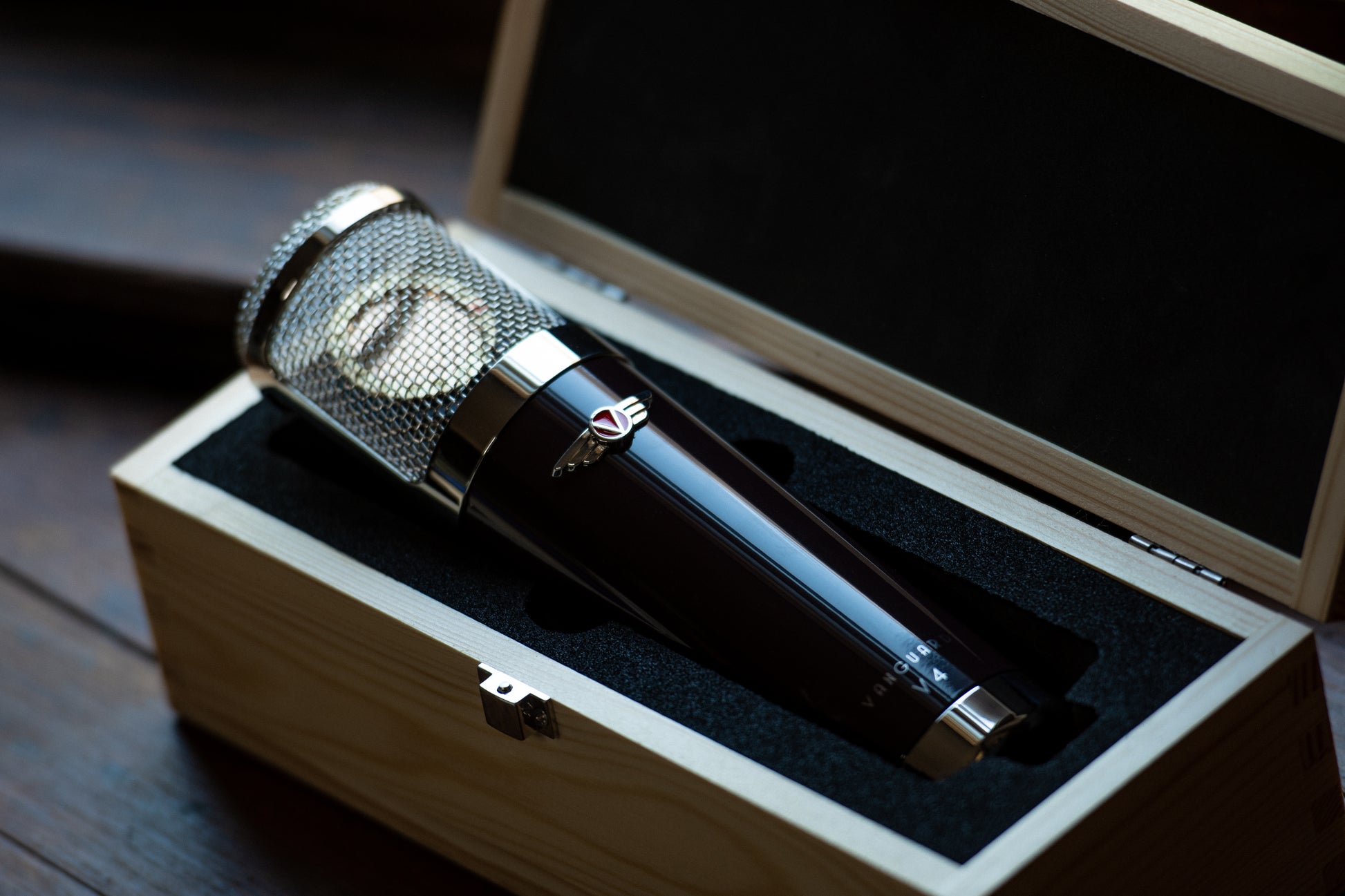

When not in use, your V4 should be stored in its padded pinewood box with the included dessicant packet.
Included Accessories
- VLSM Large Shockmount
- Padded Pinewood Microphone Storage Box
- Aluminum Carrying Case
